64 Pitch Pin Hub Spur GearsUse Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number In Your Request For Quote Allied Devices/WM Berg/PIC Design/Omnicomponents Part Number Cross-Reference Alternate materials and dimensions available |
|
64 Pitch Spur Gears
Pin Hub Bore: 1/8" Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
64 Pitch Pin Hub Spur Gear 1/8" Bore, 1/8" Face
|
Gear Formulae
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
|
Allied Devices
DG9T18 DG10T18 DG9T19 DG10T19 DG9T20 DG10T20 DG9T21 DG10T21 DG9T22 DG10T22 DG9T23 DG10T23 DG9T24 DG10T24 DG9T25 DG10T25 DG9T26 DG10T26 DG9T27 DG10T27 DG9T28 DG10T28 DG9T29 DG10T29 DG9T30 DG10T30 DG9T31 DG10T31 DG9T32 DG10T32 DG9T33 DG10T33 DG9T34 DG10T34 DG9T35 DG10T35 DG9T36 DG10T36 DG9T37 DG10T37 DG9T38 DG10T38 DG9T39 DG10T39 DG9T40 DG10T40 DG9T42 DG10T42 DG9T44 DG10T44 DG9T46 DG10T46 DG9T48 DG10T48 DG9T50 DG10T50 DG9T55 DG10T55 DG9T56 DG10T56 DG9T60 DG10T60 DG9T64 DG10T64 DG9T65 DG10T65 DG9T70 DG10T70 DG9T72 DG10T72 DG9T75 DG10T75 DG9T80 DG10T80 DG9T84 DG10T84 DG9T85 DG10T85 DG9T88 DG10T88 DG9T90 DG10T90 DG9T92 DG10T92 DG9T95 DG10T95 DG9T96 DG10T96 DG9T100 DG10T100 DG9T104 DG10T104 DG9T105 DG10T105 DG9T110 DG10T110 DG9T112 DG10T112 DG9T120 DG10T120 DG9T127 DG10T127 DG9T128 DG10T128 DG9T130 DG10T130 DG9T136 DG10T136 |
WM Berg
P64S10-18 P64A10-18 P64S10-19 P64A10-19 P64S10-20 P64A10-20 P64S10-21 P64A10-21 P64S10-22 P64A10-22 P64S10-23 P64A10-23 P64A10-24 P64A10-24 P64S10-25 P64A10-25 P64S10-26 P64A10-26 P64S10-27 P64A10-27 P64A10-28 P64A10-28 P64S10-29 P64A10-29 P64S10-30 P64A10-30 P64S10-32 P64A10-32 P64S10-34 P64A10-34 P64S10-36 P64A10-36 P64S10-38 P64A10-38 P64S10-40 P64A10-40 P64S10-42 P64A10-42 P64S10-44 P64A10-44 P64S10-46 P64A10-46 P64S10-48 P64A10-48 P64S10-50 P64A10-50 P64S10-55 P64A10-55 P64S10-56 P64A10-56 P64S10-60 P64A10-60 P64S10-64 P64A10-64 P64S10-65 P64A10-65 P64S10-70 P64A10-70 P64S10-72 P64A10-72 P64S10-75 P64A10-75 P64S10-80 P64A10-80 P64S10-84 P64A10-84 P64S10-85 P64A10-85 P64S10-88 P64A10-88 P64S10-90 P64A10-90 P64S10-92 P64A10-92 P64S10-95 P64A10-95 P64S10-96 P64A10-96 P64S10-104 P64A10-104 P64S10-105 P64A10-105 P64S10-112 P64A10-112 P64S10-120 P64A10-120 P64S10-121 P64A10-121 P64S10-127 P64A10-127 P64S10-128 P64A10-128 P64S10-136 P64A10-136 |
PIC Design
G9-23 G10-23 G9-24 G10-24 G9-25 G10-25 G9-26 G10-26 G9-27 G10-27 G9-28 G10-28 G9-29 G10-29 G9-30 G10-30 G9-32 G10-32 G9-34 G10-34 G9-36 G10-36 G9-38 G10-38 G9-40 G10-40 G9-42 G10-42 G9-44 G10-44 G9-46 G10-46 G9-48 G10-48 G9-50 G10-50 G9-55 G10-55 G9-56 G10-56 G9-60 G10-60 G9-64 G10-64 G9-65 G10-65 G9-70 G10-70 G9-72 G10-72 G9-75 G10-75 G9-80 G10-80 G9-84 G10-84 G9-85 G10-85 G9-88 G10-88 G9-90 G10-90 G9-92 G10-92 G9-95 G10-95 G9-96 G10-96 G9-100 G10-100 G9-104 G10-104 G9-105 G10-105 G9-112 G10-112 G9-120 G10-120 G9-127 G10-127 G9-128 G10-128 G9-136 G10-136 |
Omnicomponents
64S03P18 64A03P18 64S03P19 64A03P19 64S03P20 64A03P20 64S03P21 64A03P21 64S03P22 64A03P22 64S03P23 64A03P23 64S03P24 64A03P24 64S03P25 64A03P25 64S03P26 64A03P26 64S03P27 64A03P27 64S03P28 64A03P28 64S03P29 64A03P29 64S03P30 64A03P30 64S03P31 64A03P31 64S03P32 64A03P32 64S03P33 64A03P33 64S03P34 64A03P34 64S03P35 64A03P35 64S03P36 64A03P36 64S03P37 64A03P37 64S03P38 64A03P38 64S03P39 64A03P39 64S03P40 64A03P40 64S03P42 64A03P42 64S03P44 64A03P44 64S03P46 64A03P46 64S03P48 64A03P48 64S03P50 64A03P50 64S03P55 64A03P55 64S03P56 64A03P56 64S03P60 64A03P60 64S03P64 64A03P64 64S03P65 64A03P65 64S03P70 64A03P70 64S03P72 64A03P72 64S03P75 64A03P75 64S03P80 64A03P80 64S03P84 64A03P84 64S03P85 64A03P85 64S03P88 64A03P88 64S03P90 64A03P90 64S03P92 64A03P92 64S03P95 64A03P95 64S03P96 64A03P96 64S03P100 64A03P100 64S03P104 64A03P104 64S03P105 64A03P105 64S03P110 64A03P110 64S03P112 64A03P112 64S03P120 64A03P120 64S03P121 64A03P121 64S03P127 64A03P127 64S03P128 64A03P128 64S03P130 64A03P130 64S03P136 64A03P136 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
64 Pitch Spur Gears
Pin Hub Bore: 3/16" Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
64 Pitch Pin Hub Spur Gear 3/16" Bore, 1/8" Face
|
Gear Formulae
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
|
Allied Devices
DG11T22 DG12T22 DG11T23 DG12T23 DG11T24 DG12T24 DG11T25 DG12T25 DG11T26 DG12T26 DG11T27 DG12T27 DG11T28 DG12T28 DG11T29 DG12T29 DG11T30 DG12T30 DG11T31 DG12T31 DG11T32 DG12T32 DG11T33 DG12T33 DG11T34 DG12T34 DG11T35 DG12T35 DG11T36 DG12T36 DG11T37 DG12T37 DG11T38 DG12T38 DG11T39 DG12T39 DG11T40 DG12T40 DG11T41 DG12T41 DG11T42 DG12T42 DG11T43 DG12T43 DG11T44 DG12T44 DG11T45 DG12T45 DG11T46 DG12T46 DG11T47 DG12T47 DG11T48 DG12T48 DG11T49 DG12T49 DG11T50 DG12T50 DG11T51 DG12T51 DG11T52 DG12T52 DG11T53 DG12T53 DG11T54 DG12T54 DG11T55 DG12T55 DG11T56 DG12T56 DG11T57 DG12T57 DG11T58 DG12T58 DG11T59 DG12T59 DG11T60 DG12T60 DG11T61 DG12T61 DG11T62 DG12T62 DG11T63 DG12T63 DG11T64 DG12T64 DG11T65 DG12T65 DG11T66 DG12T66 DG11T67 DG12T67 DG11T68 DG12T68 DG11T69 DG12T69 DG11T70 DG12T70 DG11T71 DG12T71 DG11T72 DG12T72 DG11T73 DG12T73 DG11T74 DG12T74 DG11T75 DG12T75 DG11T76 DG12T76 DG11T77 DG12T77 DG11T78 DG12T78 DG11T79 DG12T79 DG11T80 DG12T80 DG11T81 DG12T81 DG11T82 DG12T82 DG11T83 DG12T83 DG11T84 DG12T84 DG11T85 DG12T85 DG11T86 DG12T86 DG11T87 DG12T87 DG11T88 DG12T88 DG11T89 DG12T89 DG11T90 DG12T90 DG11T91 DG12T91 DG11T92 DG12T92 DG11T93 DG12T93 DG11T94 DG12T94 DG11T95 DG12T95 DG11T96 DG12T96 DG11T97 DG12T97 DG11T98 DG12T98 DG11T99 DG12T99 DG11T100 DG12T100 DG11T101 DG12T101 DG11T102 DG12T102 DG11T103 DG12T103 DG11T104 DG12T104 DG11T105 DG12T105 DG11T106 DG12T106 DG11T107 DG12T107 DG11T108 DG12T108 DG11T109 DG12T109 DG11T110 DG12T110 DG11T111 DG12T111 DG11T112 DG12T112 DG11T113 DG12T113 DG11T114 DG12T114 DG11T115 DG12T115 DG11T116 DG12T116 DG11T117 DG12T117 DG11T118 DG12T118 DG11T119 DG12T119 DG11T120 DG12T120 DG11T121 DG12T121 DG11T122 DG12T122 DG11T123 DG12T123 DG11T124 DG12T124 DG11T125 DG12T125 DG11T126 DG12T126 DG11T127 DG12T127 DG11T128 DG12T128 DG11T129 DG12T129 DG11T130 DG12T130 DG11T135 DG12T135 DG11T136 DG12T136 DG11T140 DG12T140 DG11T144 DG12T144 DG11T145 DG12T145 DG11T150 DG12T150 DG11T152 DG12T152 DG11T155 DG12T155 DG11T160 DG12T160 DG11T165 DG12T165 DG11T168 DG12T168 DG11T170 DG12T170 DG11T175 DG12T175 DG11T176 DG12T176 DG11T184 DG12T184 DG11T192 DG12T192 DG11T200 DG12T200 DG11T208 DG12T208 DG11T216 DG12T216 DG11T224 DG12T224 DG11T232 DG12T232 DG11T240 DG12T240 DG11T248 DG12T248 DG11T256 DG12T256 DG11T264 DG12T264 |
WM Berg
P64S19-25 P64A19-25 P64S19-26 P64A19-26 P64A19-28 P64A19-28 P64S19-29 P64A19-29 P64S19-30 P64A19-30 P64S19-31 P64A19-31 P64S19-32 P64A19-32 P64S19-34 P64A19-34 P64S19-35 P64A19-35 P64S19-36 P64A19-36 P64S19-38 P64A19-38 P64S19-40 P64A19-40 P64S19-42 P64A19-42 P64S19-44 P64A19-44 P64S19-45 P64A19-45 P64S19-46 P64A19-46 P64S19-48 P64A19-48 P64S19-50 P64A19-50 P64S19-55 P64A19-55 P64S19-58 P64A19-58 P64S19-60 P64A19-60 P64S19-64 P64A19-64 P64S19-65 P64A19-65 P64S19-70 P64A19-70 P64S19-72 P64A19-72 P64S10-75 P64A10-75 P64S19-80 P64A19-80 P64S19-84 P64A19-84 P64S19-85 P64A19-85 P64S19-88 P64A19-88 P64S19-90 P64A19-90 P64S19-92 P64A19-92 P64S19-95 P64A19-95 P64S19-96 P64A19-96 P64S19-100 P64A19-100 P64S19-105 P64A19-105 P64S19-110 P64A19-110 P64S19-115 P64A19-115 P64S19-120 P64A19-120 P64S19-122 P64A19-122 P64S19-124 P64A19-124 P64S19-127 P64A19-127 P64S19-128 P64A19-128 P64S19-130 P64A19-130 P64S19-136 P64A19-136 P64S19-140 P64A19-140 P64S19-144 P64A19-144 P64S19-150 P64A19-150 P64S19-152 P64A19-152 P64S19-156 P64A19-156 P64S19-160 P64A19-160 P64S19-164 P64A19-164 P64S19-168 P64A19-168 P64S19-170 P64A19-170 P64S19-176 P64A19-176 P64S19-180 P64A19-180 P64S19-184 P64A19-184 P64S19-190 P64A19-190 P64S19-192 P64A19-192 P64S19-200 P64A19-200 P64S19-224 P64A19-224 P64S19-256 P64A19-256 |
PIC Design
G11-27 G12-27 G11-28 G12-28 G11-29 G12-29 G11-30 G12-30 G11-32 G12-32 G11-34 G12-34 G11-36 G12-36 G11-38 G12-38 G11-40 G12-40 G11-42 G12-42 G11-44 G12-44 G11-46 G12-46 G11-48 G12-48 G11-50 G12-50 G11-55 G12-55 G11-56 G12-56 G11-60 G12-60 G11-64 G12-64 G11-65 G12-65 G11-70 G12-70 G11-72 G12-72 G11-75 G12-75 G11-80 G12-80 G11-84 G12-84 G11-85 G12-85 G11-88 G12-88 G11-90 G12-90 G11-92 G12-92 G11-95 G12-95 G11-96 G12-96 G11-100 G12-100 G11-104 G12-104 G11-105 G12-105 G11-112 G12-112 G11-120 G12-120 G11-127 G12-127 G11-128 G12-128 G11-136 G12-136 G11-144 G12-144 G11-152 G12-152 G11-160 G12-160 G11-168 G12-168 G11-176 G12-176 G11-184 G12-184 G11-192 G12-192 G11-200 G12-200 |
Omnicomponents
64S06P22 64A06P22 64S06P23 64A06P23 64S06P24 64A06P24 64S06P25 64A06P25 64S06P26 64A06P26 64S06P27 64A06P27 64S06P28 64A06P28 64S06P29 64A06P29 64S06P30 64A06P30 64S06P31 64A06P31 64S06P32 64A06P32 64S06P33 64A06P33 64S06P34 64A06P34 64S06P35 64A06P35 64S06P36 64A06P36 64S06P37 64A06P37 64A06P38 64S06P38 64A06P39 64S06P39 64A06P40 64S06P40 64A06P41 64S06P41 64S06P42 64A06P42 64S06P43 64A06P43 64S06P44 64A06P44 64S06P45 64A06P45 64S06P46 64A06P46 64S06P47 64A06P47 64S06P48 64A06P48 64S06P49 64A06P49 64S06P50 64A06P50 64S06P51 64A06P51 64S06P52 64A06P52 64S06P53 64A06P53 64S06P54 64A06P54 64S06P55 64A06P55 64S06P56 64A06P56 64S06P57 64A06P57 64S06P58 64A06P58 64S06P59 64A06P59 64S06P60 64A06P60 64S06P61 64A06P61 64S06P62 64A06P62 64S06P63 64A06P63 64S06P64 64A06P64 64S06P65 64A06P65 64S06P66 64A06P66 64S06P67 64A06P67 64S06P68 64A06P68 64S06P69 64A06P69 64S06P70 64A06P70 64S06P71 64A06P71 64S06P72 64A06P72 64S06P73 64A06P73 64S06P74 64A06P74 64S06P75 64A06P75 64S06P76 64A06P76 64S06P77 64A06P77 64S06P78 64A06P78 64S06P79 64A06P79 64S06P80 64A06P80 64S06P81 64A06P81 64S06P82 64A06P82 64S06P83 64A06P83 64S06P84 64A06P84 64S06P85 64A06P85 64S06P86 64A06P86 64S06P87 64A06P87 64S06P88 64A06P88 64S06P89 64A06P89 64S06P90 64A06P90 64S06P91 64A06P91 64S06P92 64A06P92 64S06P93 64A06P93 64S06P94 64A06P94 64S06P95 64A06P95 64S06P96 64A06P96 64S06P97 64A06P97 64S06P98 64A06P98 64S06P99 64A06P99 64S06P100 64A06P100 64S06P101 64A06P101 64S06P102 64A06P102 64S06P103 64A06P103 64S06P104 64A06P104 64S06P105 64A06P105 64S06P106 64A06P106 64S06P107 64A06P107 64S06P108 64A06P108 64S06P109 64A06P109 64S06P110 64A06P110 64S06P111 64A06P111 64S06P112 64A06P112 64S06P113 64A06P113 64S06P114 64A06P114 64S06P115 64A06P115 64S06P116 64A06P116 64S06P117 64A06P117 64S06P118 64A06P118 64S06P119 64A06P119 64S06P120 64A63P120 64S06P121 64A06P121 64S06P122 64A06P122 64S06P123 64A06P123 64S06P124 64A06P124 64S06P125 64A06P125 64S06P126 64A06P126 64S06P127 64A06P127 64S06P128 64A06P128 64S06P129 64A06P129 64S06P130 64A06P130 64S06P135 64A06P135 64S06P136 64A06P136 64S06P140 64A06P140 64S06P144 64A06P144 64S06P145 64A06P145 64S06P150 64A06P150 64S06P152 64A06P152 64S06P155 64A06P155 64S06P156 64A06P156 64S06P160 64A06P160 64S06P164 64A06P164 64S06P165 64A06P165 64S06P168 64A06P168 64S06P170 64A06P170 64S06P175 64A06P175 64S06P176 64A06P176 64S06P180 64A06P180 64S06P184 64A06P184 64S06P190 64A06P190 64S06P192 64A06P192 64S06P200 64A06P200 64S06P208 64A06P208 64S06P216 64A06P216 64S06P224 64A06P224 64S06P232 64A06P232 64S06P240 64A06P240 64S06P248 64A06P248 64S06P256 64A06P256 64S06P264 64A06P264 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
64 Pitch Spur Gears
Pin Hub Bore: 3/16" Face: 3/16" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |

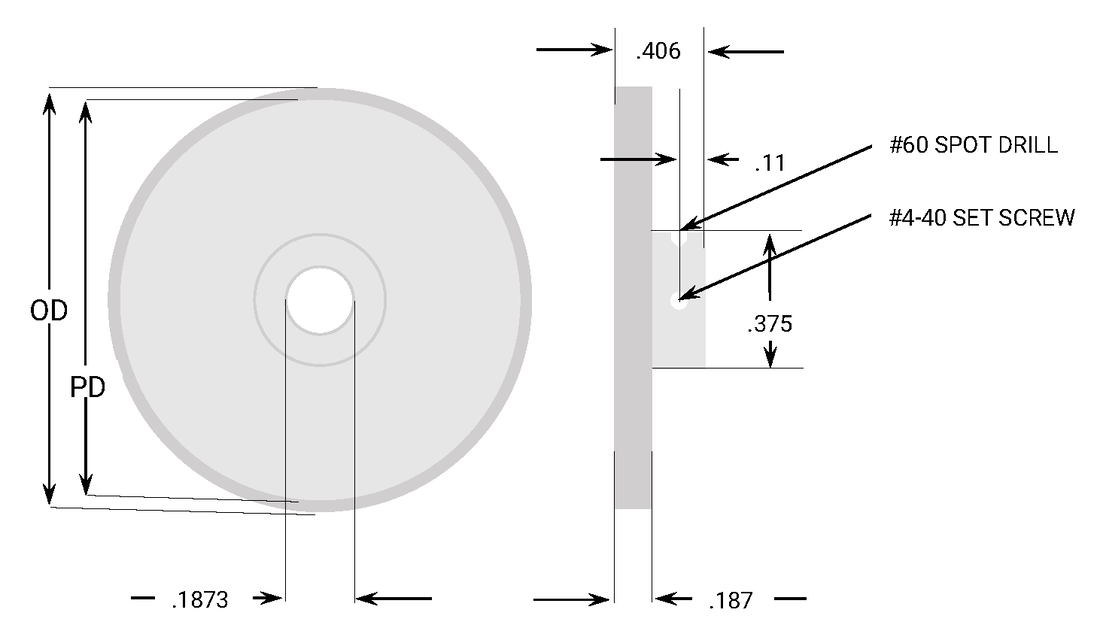

64 Pitch Pin Hub Spur Gear 3/16" Bore, 3/16" Face
|
|
Allied Devices
DG15T22 DG16T22 DG15T23 DG16T23 DG15T24 DG16T24 DG15T25 DG16T25 DG15T26 DG16T26 DG15T27 DG16T27 DG15T28 DG16T28 DG15T29 DG16T29 DG15T30 DG16T30 DG15T31 DG16T31 DG15T32 DG16T32 DG15T33 DG16T33 DG15T34 DG16T34 DG15T35 DG16T35 DG15T36 DG16T36 DG15T37 DG16T37 DG15T38 DG16T38 DG15T39 DG16T39 DG15T40 DG16T40 DG15T41 DG16T41 DG15T42 DG16T42 DG15T43 DG16T43 DG15T44 DG16T44 DG15T45 DG16T45 DG15T46 DG16T46 DG15T47 DG16T47 DG15T48 DG16T48 DG15T49 DG16T49 DG15T50 DG16T50 DG15T51 DG16T51 DG15T52 DG16T52 DG15T53 DG16T53 DG15T54 DG16T54 DG15T55 DG16T55 DG15T56 DG16T56 DG15T57 DG16T57 DG15T58 DG16T58 DG15T59 DG16T59 DG15T60 DG16T60 DG15T61 DG16T61 DG15T62 DG16T62 DG15T63 DG16T63 DG15T64 DG16T64 DG15T65 DG16T65 DG15T66 DG16T66 DG15T67 DG16T67 DG15T68 DG16T68 DG15T69 DG16T69 DG15T70 DG16T70 DG15T71 DG16T71 DG15T72 DG16T72 DG15T73 DG16T73 DG15T74 DG16T74 DG15T75 DG16T75 DG15T76 DG16T76 DG15T77 DG16T77 DG15T78 DG16T78 DG15T79 DG16T79 DG15T80 DG16T80 DG15T81 DG16T81 DG15T82 DG16T82 DG15T83 DG16T83 DG15T84 DG16T84 DG15T85 DG16T85 DG15T86 DG16T86 DG15T87 DG16T87 DG15T88 DG16T88 DG15T89 DG16T89 DG15T90 DG16T90 DG15T91 DG16T91 DG15T92 DG16T92 DG15T93 DG16T93 DG15T94 DG16T94 DG15T95 DG16T95 DG15T96 DG16T96 DG15T97 DG16T97 DG15T98 DG16T98 DG15T99 DG16T99 DG15T100 DG16T100 DG15T101 DG16T101 DG15T102 DG16T102 DG15T103 DG16T103 DG15T104 DG16T104 DG15T105 DG16T105 DG15T106 DG16T106 DG15T107 DG16T107 DG15T108 DG16T108 DG15T109 DG16T109 DG15T110 DG16T110 DG15T111 DG16T111 DG15T112 DG16T112 DG15T113 DG16T113 DG15T114 DG16T114 DG15T115 DG16T115 DG15T116 DG16T116 DG15T117 DG16T117 DG15T118 DG16T118 DG15T119 DG16T119 DG15T120 DG16T120 DG15T121 DG16T121 DG15T122 DG16T122 DG15T123 DG16T123 DG15T124 DG16T124 DG15T125 DG16T125 DG15T126 DG16T126 DG15T127 DG16T127 DG15T128 DG16T128 DG15T129 DG16T129 DG15T130 DG16T130 DG15T135 DG16T135 DG15T136 DG16T136 DG15T140 DG16T140 DG15T144 DG16T144 DG15T145 DG16T145 DG15T150 DG16T150 DG15T152 DG16T152 DG15T155 DG16T155 DG15T156 DG16T156 DG15T160 DG16T160 DG15T165 DG16T165 DG15T168 DG16T168 DG15T170 DG16T170 DG15T175 DG16T175 DG15T176 DG16T176 DG15T184 DG16T184 DG15T192 DG16T192 DG15T200 DG16T200 DG15T208 DG16T208 DG15T216 DG16T216 DG15T224 DG16T224 DG15T232 DG16T232 DG15T240 DG16T240 DG15T248 DG16T248 DG15T256 DG16T256 DG15T264 DG16T264 |
WM Berg
P64S21-25 P64A21-25 P64S21-26 P64A21-26 P64S21-28 P64A21-28 P64S21-30 P64A21-30 P64S21-32 P64A21-32 P64S21-36 P64A21-36 P64S21-40 P64A21-40 P64S21-44 P64A21-44 P64S21-46 P64A21-46 P64S21-48 P64A21-48 P64S21-50 P64A21-50 P64S21-56 P64A21-56 P64S21-60 P64A21-60 P64S21-64 P64A21-64 P64S21-70 P64A21-70 P64S21-80 P64A21-80 P64S21-88 P64A21-88 P64S21-90 P64A21-90 P64S21-96 P64A21-96 P64S21-100 P64A21-100 P64S21-110 P64A21-110 P64S21-112 P64A21-112 P64S21-120 P64A21-120 P64S21-128 P64A21-128 P64S21-136 P64A21-136 P64S21-144 P64A21-144 P64S21-152 P64A21-152 P64S21-160 P64A21-160 P64S21-176 P64A21-176 P64S21-192 P64A21-192 P64S21-200 P64A21-200 P64S21-208 P64A21-208 P64S21-224 P64A21-224 P64S21-240 P64A21-240 P64S21-265 P64A21-256 |
PIC Design
G15-27 G16-27 G15-28 G16-28 G15-29 G16-29 G15-30 G16-30 G15-32 G16-32 G15-34 G16-34 G15-36 G16-36 G15-38 G16-38 G15-40 G16-40 G15-42 G16-42 G15-44 G16-44 G15-46 G16-46 G15-48 G16-48 G15-50 G16-50 G15-55 G16-55 G15-56 G16-56 G15-60 G16-60 G15-64 G16-64 G15-65 G16-65 G15-70 G16-70 G15-72 G16-72 G15-75 G16-75 G15-80 G16-80 G15-84 G16-84 G15-85 G16-85 G15-88 G16-88 G15-90 G16-90 G15-92 G16-92 G15-95 G16-95 G15-96 G16-96 G15-100 G16-100 G15-104 G16-104 G15-105 G16-105 G15-112 G16-112 G15-120 G16-120 G15-127 G16-127 G15-128 G16-128 G15-136 G16-136 G5-144 G6-144 G15-152 G16-152 G15-160 G16-160 G15-168 G16-168 G15-176 G16-176 G15-184 G16-184 G15-192 G16-192 G15-200 G16-200 G15-208 G16-208 G15-216 G16-216 G15-224 G16-224 G15-232 G16-232 G15-240 G16-240 G15-248 G16-248 G15-256 G16-256 |
Omnicomponents
64S07P22 64A07P22 64S07P23 64A07P23 64S07P24 64A07P24 64S07P25 64A07P25 64S07P26 64A07P26 64S07P27 64A07P27 64S07P28 64A07P28 64S07P29 64A07P29 64S07P30 64A07P30 64S07P31 64A07P31 64S07P32 64A07P32 64S07P33 64A07P33 64S07P34 64A07P34 64S07P35 64A07P35 64S07P36 64A07P36 64S07P37 64A07P37 64S07P38 64A07P38 64S07P39 64A07P39 64S07P40 64A07P40 64S07P41 64A07P41 64S07P42 64A07P42 64S07P43 64A07P43 64S07P44 64A07P44 64S07P45 64A07P45 64S07P46 64A07P46 64S07P47 64A07P47 64S07P48 64A07P48 64S07P49 64A07P49 64S07P50 64A07P50 64S07P51 64A07P51 64S07P52 64A07P52 64S07P53 64A07P53 64S07P54 64A07P54 64S07P55 64A07P55 64S07P56 64A07P56 64S07P57 64A07P57 64S07P58 64A07P58 64S07P59 64A07P59 64S07P60 64A07P60 64S07P61 64A07P61 64S07P62 64A07P62 64S07P63 64A07P63 64S07P64 64A07P64 64S07P65 64A07P65 64S07P66 64A07P66 64S07P67 64A07P67 64S07P68 64A07P68 64S07P69 64A07P69 64S07P70 64A07P70 64S07P71 64A07P71 64S07P72 64A07P72 64S07P73 64A07P73 64S07P74 64A07P74 64S07P75 64A07P75 64S07P76 64A07P76 64S07P77 64A07P77 64S07P78 64A07P78 64S07P79 64A07P79 64S07P80 64A07P80 64S07P81 64A07P81 64S07P82 64A07P82 64S07P83 64A07P83 64S07P84 64A07P84 64S07P85 64A07P85 64S07P86 64A07P86 64S07P87 64A07P87 64S07P88 64A07P88 64S07P89 64A07P89 64S07P90 64A07P90 64S07P91 64A07P91 64S07P92 64A07P92 64S07P93 64A07P93 64S07P94 64A07P94 64S07P95 64A07P95 64S07P96 64A07P96 64S07P97 64A07P97 64S07P98 64A07P98 64S07P99 64A07P99 64S07P100 64A07P100 64S07P101 64A07P101 64A07P102 64A07P102 64S07P103 64A07P103 64S07P104 64A07P104 64S07P105 64A07P105 64S07P106 64A07P106 64S07P107 64A07P107 64S07P108 64A07P108 64S07P109 64A07P109 64S07P110 64A07P110 64S07P111 64A07P111 64S07P112 64A07P112 64S07P113 64A07P113 64S07P114 64A07P114 64S07P115 64A07P115 64S07P116 64A07P116 64S07P117 64A07P117 64S07P118 64A07P118 64S07P119 64A07P119 64S07P120 64A67P120 64S07P121 64A07P121 64S07P122 64A07P122 64S07P123 64A07P123 64S07P124 64A07P124 64S07P125 64A07P125 64S07P126 64A07P126 64S07P127 64A07P127 64S07P128 64A07P128 64S07P129 64A07P129 64S07P130 64A07P130 64S07P135 64A07P135 64S07P136 64A07P136 64S07P140 64A07P140 64S07P144 64A07P144 64S07P145 64A07P145 64S07P150 64A07P150 64S07P152 64A071P52 64S07P155 64A07P155 64S07P156 64A07P156 64S07P160 64A07P160 64S07P165 64A07P165 64S07P168 64A07P168 64S07P170 64A07P170 64S07P175 64A07P175 64S07P176 64A07P176 64S07P184 64A07P184 64S07P192 64A07P192 64S07P200 64A07P200 64S07P208 64A07P208 64S07P216 64A07P216 64S07P224 64A07P224 64S07P232 64A07P232 64S07P240 64A07P240 64S07P248 64A07P248 64S07P256 64A07P256 64S07P264 64A07P264 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM.303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
64 Pitch Spur Gears
Pin Hub Bore: 1/4" Face: 1/8" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |

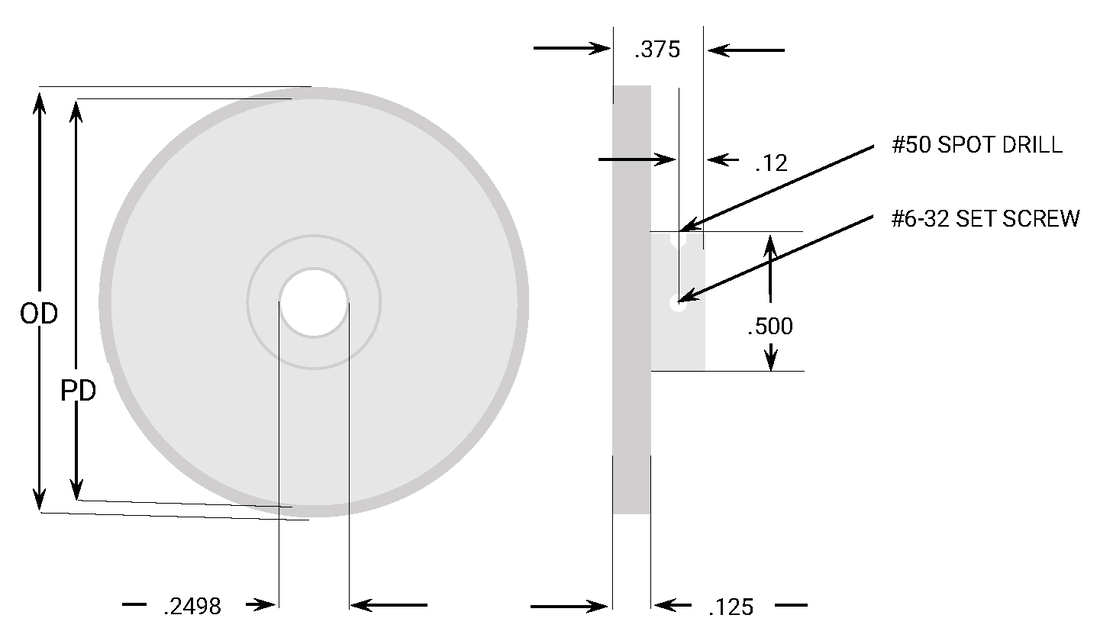

64 Pitch Pin Hub Spur Gear 1/4" Bore, 1/8" Face
|
Gear Formulae
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
Pitch Diameter = Number of Teeth Divided by Diametrical Pitch
PD = N/DP
Example: 16 Pitch Gear with 20 Teeth has a Pitch Diameter of 1.2500
20/16=1.2500
Outside Diameter = Number of Teeth Plus 2 Divided by Diametrical Pitch
(N+2)/DP
Example: 16 Pitch Gear with 20 Teeth has an Outside Diameter of 1.375
(20+2)/16=1.375
|
Allied Devices
DG13T26 DG14T26 DG13T27 DG14T27 DG13T28 DG14T28 DG13T29 DG14T29 DG13T30 DG14T30 DG13T31 DG14T31 DG13T32 DG14T32 DG13T33 DG14T33 DG13T34 DG14T34 DG13T35 DG14T35 DG13T36 DG14T36 DG13T37 DG14T37 DG13T38 DG14T38 DG13T39 DG14T39 DG13T40 DG14T40 DG13T41 DG14T41 DG13T42 DG14T42 DG13T43 DG14T43 DG13T44 DG14T44 DG13T45 DG14T45 DG13T46 DG14T46 DG13T47 DG14T47 DG13T48 DG14T48 DG13T49 DG14T49 DG13T50 DG14T50 DG13T51 DG14T51 DG13T52 DG14T52 DG13T53 DG14T53 DG13T54 DG14T54 DG13T55 DG14T55 DG13T56 DG14T56 DG13T57 DG14T57 DG13T58 DG14T58 DG13T59 DG14T59 DG13T60 DG14T60 DG13T61 DG14T61 DG13T62 DG14T62 DG13T63 DG14T63 DG13T64 DG14T64 DG13T65 DG14T65 DG13T66 DG14T66 DG13T67 DG14T67 DG13T68 DG14T68 DG13T69 DG14T69 DG13T70 DG14T70 DG13T71 DG14T71 DG13T72 DG14T72 DG13T73 DG14T73 DG13T74 DG14T74 DG13T75 DG14T75 DG13T76 DG14T76 DG13T77 DG14T77 DG13T78 DG14T78 DG13T79 DG14T79 DG13T80 DG14T80 DG13T81 DG14T81 DG13T82 DG14T82 DG13T83 DG14T83 DG13T84 DG14T84 DG13T85 DG14T85 DG13T86 DG14T86 DG13T87 DG14T87 DG13T88 DG14T88 DG13T89 DG14T89 DG13T90 DG14T90 DG13T91 DG14T91 DG13T92 DG14T92 DG13T93 DG14T93 DG13T94 DG14T94 DG13T95 DG14T95 DG13T96 DG14T96 DG13T97 DG14T97 DG13T98 DG14T98 DG13T99 DG14T99 DG13T100 DG14T100 DG13T101 DG14T101 DG13T102 DG14T102 DG13T103 DG14T103 DG13T104 DG14T104 DG13T105 DG14T105 DG13T106 DG14T106 DG13T107 DG14T107 DG13T108 DG14T108 DG13T109 DG14T109 DG13T110 DG14T110 DG13T111 DG14T111 DG13T112 DG14T112 DG13T113 DG14T113 DG13T114 DG14T114 DG13T115 DG14T115 DG13T116 DG14T116 DG13T117 DG14T117 DG13T118 DG14T118 DG13T119 DG14T119 DG13T120 DG14T120 DG13T121 DG14T121 DG13T122 DG14T122 DG13T123 DG14T123 DG13T124 DG14T124 DG13T125 DG14T125 DG13T126 DG14T126 DG13T130 DG14T130 DG13T135 DG14T135 DG13T136 DG14T136 DG13T140 DG14T140 DG13T144 DG14T144 DG13T150 DG14T150 DG13T152 DG14T152 DG13T155 DG14T155 DG13T160 DG14T160 DG13T168 DG14T168 DG13T170 DG14T170 DG13T176 DG14T176 DG13T184 DG14T184 DG13T192 DG14T192 DG13T200 DG14T200 DG13T208 DG14T208 DG13T216 DG14T216 DG13T224 DG14T224 DG13T232 DG14T232 DG13T240 DG14T240 DG13T248 DG14T248 DG13T256 DG14T256 DG13T264 DG14T264 |
WM Berg
P64S26-32 P64A26-32 P64S26-34 P64A26-34 P64S26-35 P64A26-35 P64S26-36 P64A26-36 P64S26-40 P64A26-40 P64S26-42 P64A26-42 P64S26-44 P64A26-44 P64S26-45 P64A26-45 P64S26-46 P64A26-46 P64S26-48 P64A26-48 P64S26-50 P64A26-50 P64S26-54 P64A26-54 P64S26-55 P64A26-55 P64S26-56 P64A26-56 P64S26-60 P64A26-60 P64S26-64 P64A26-64 P64S26-70 P64A26-70 P64S26-72 P64A26-72 P64S26-75 P64A26-75 P64S26-80 P64A26-80 P64S26-84 P64A26-84 P64S26-85 P64A26-85 P64S26-86 P64A26-86 P64S26-90 P64A26-90 P64S26-95 P64A26-95 P64S26-100 P64A26-100 P64S26-105 P64A26-105 P64S26-110 P64A26-110 P64S26-112 P64A26-112 P64S26-120 P64A26-120 P64S26-124 P64A26-124 P64S26-128 P64A26-128 P64S26-130 P64A26-130 P64S26-140 P64A26-140 P64S26-144 P64A26-144 P64S26-150 P64A26-150 P64S26-160 P64A26-160 P64S26-168 P64A26-168 P64S26-170 P64A26-170 P64S26-176 P64A26-176 P64S26-180 P64A26-180 P64S26-184 P64A26-184 P64S26-192 P64A26-192 P64S26-200 P64A26-200 P64S26-208 P64A26-208 P64S26-216 P64A26-216 P64S26-224 P64A26-224 P64S26-232 P64A26-232 P64S26-240 P64A26-240 P64S26-248 P64A26-248 P64S26-256 P64A26-256 P64S26-264 P64A26-264 |
PIC Design
G13-36 G14-36 G13-38 G14-38 G13-40 G14-40 G13-42 G14-42 G13-44 G14-44 G13-46 G14-46 G13-48 G14-48 G13-50 G14-50 G13-55 G14-55 G13-56 G14-56 G13-60 G14-60 G13-64 G14-64 G13-65 G14-65 G13-70 G14-70 G13-72 G14-72 G13-75 G14-75 G13-80 G14-80 G13-84 G14-84 G13-85 G14-85 G13-88 G14-88 G13-90 G14-90 G13-92 G14-92 G13-95 G14-95 G13-96 G14-96 G13-100 G14-100 G13-104 G14-104 G13-105 G14-105 G13-112 G14-112 G13-120 G14-120 G13-127 G14-127 G13-128 G14-128 G13-136 G14-136 G13-144 G14-144 G13-152 G14-152 G13-160 G14-160 G13-168 G14-168 G13-176 G14-176 G13-184 G14-184 G13-192 G14-192 G13-200 G14-200 G13-208 G14-208 G13-216 G14-216 G13-224 G14-224 G13-232 G14-232 G13-240 G14-240 G13-248 G14-248 G13-256 G14-256 G13-264 G14-264 |
Omnicomponents
64S08P26 64A08P26 64S08P27 64A08P27 64S08P28 64A08P28 64S08P29 64A08P29 64S08P30 64A08P30 64S08P31 64A08P31 64S08P32 64A08P32 64S08P33 64A08P33 64S08P34 64A08P34 64S08P35 64A08P35 64S08P36 64A08P36 64S08P37 64A08P37 64S08P38 46A08P38 64S08P39 64A08P39 64S08P40 64A08P40 64S08P41 64A08P41 64S08P42 64A08P42 64S08P43 64A08P43 64S08P44 64A08P44 64S08P45 64A08P45 64S08P46 64A08P46 64S08P47 64A08P47 64S08P48 64A08P48 64S08P49 64A08P49 64S08P50 64A08P50 64S08P51 64A08P51 64S08P52 64A08P52 64S08P53 64A08P53 64S08P54 64A08P54 64S08P55 64A08P55 64S08P56 64A08P56 64S08P57 64A08P57 64S08P58 64A08P58 64S08P59 64A08P59 64S08P60 64A08P60 64S08P61 64A08P61 64S08P62 64A08P62 64S08P63 64A08P63 64S08P64 64A08P64 64S08P65 64A08P65 64S08P66 64A08P66 64S08P67 64A08P67 64S08P68 64A08P68 64S08P69 64A08P69 64S08P70 64A08P70 64S08P71 64A08P71 64S08P72 64A08P72 64S08P73 64A08P73 64S08P74 64A08P74 64S08P75 64A08P75 64S08P76 64A08P76 64S08P77 64A08P77 64S08P78 64A08P78 64S08P79 64A08P79 64S08P80 64A08P80 64S08P81 64A08P81 64S08P82 64A08P82 64S08P83 64A08P83 64S08P84 64A08P84 64S08P85 64A08P85 64S08P86 64A08P86 64S08P87 64A08P87 64S08P88 64A08P88 64S08P89 64A08P89 64S08P90 64A08P90 64S08P91 64A08P91 64S08P92 64A08P92 64S08P93 64A08P93 64S08P94 64A08P94 64S08P95 64A08P95 64S08P96 64A08P96 64S08P97 64A08P97 64S08P98 64A08P98 64S08P99 64A08P99 64S08P100 64A08P100 64S08P101 64A08P101 64S08P102 64A08P102 64S08P103 64A08P103 64S08P104 64A08P104 64S08P105 64A08P105 64S08P106 64A08P106 64S08P107 64A08P107 64S08P108 64A08P108 64S08P109 64A08P109 64S08P110 64A08P110 64S08P111 64A08P111 64S08P112 64A08P112 64S08P113 64A08P113 64S08P114 64A08P114 64S08P115 64A08P115 64S08P116 64A08P116 64S08P117 64A08P117 64S08P118 64A08P118 64S08P119 64A08P119 64S08P120 64A08P120 64S08P121 64A08P121 64S08P122 64A08P122 64S08P123 64A08P123 64S08P124 64A08P124 64S08P125 64A08P125 64S08P126 64A08P126 64S08P127 64A08P127 64S08P128 64A08P128 64S08P130 64A08P130 64S08P135 64A08P135 64S08P136 64A08P136 64S08P140 64A08P140 64S08P144 64A08P144 64S08P150 64A08P150 64S08P152 64A08P152 64S08P155 64A08P155 64S08P160 64A08P160 64S08P168 64A08P168 64S08P170 64A08P170 64S08P176 64A08P176 64S08P180 64A08P180 64S08P184 64A08P184 64S08P192 64A08P192 64S08P200 64A08P200 64S08P208 64A08P208 64S08P216 64A08P216 64S08P224 64A08P224 64S08P232 64A08P232 64S08P240 64A08P240 64S08P248 64A08P248 64S08P256 64A08P256 64S08P264 64A08P264 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
|
64 Pitch Spur Gears
Pin Hub Bore: 1/4" Face: 3/16" Materials
20˚ Pressure Angle AGMA 10 Made in the USA |
64 Pitch Pin Hub Spur Gear 1/4" Bore, 3/16" Face
|
|
Allied Devices
DG17T26 DG18T26 DG17T27 DG18T27 DG17T28 DG18T28 DG17T29 DG18T29 DG17T30 DG18T30 DG17T31 DG18T31 DG17T32 DG18T32 DG17T33 DG18T33 DG17T34 DG18T34 DG17T35 DG18T35 DG17T36 DG18T36 DG17T37 DG18T37 DG17T38 DG18T38 DG17T39 DG18T39 DG17T40 DG18T40 DG17T41 DG18T41 DG17T42 DG18T42 DG17T43 DG18T43 DG17T44 DG18T44 DG17T45 DG18T45 DG17T46 DG18T46 DG17T47 DG18T47 DG17T48 DG18T48 DG17T49 DG18T49 DG17T50 DG18T50 DG17T51 DG18T51 DG17T52 DG18T52 DG17T53 DG18T53 DG17T54 DG18T54 DG17T55 DG18T55 DG17T56 DG18T56 DG17T57 DG18T57 DG17T58 DG18T58 DG17T59 DG18T59 DG17T60 DG18T60 DG17T61 DG18T61 DG17T62 DG18T62 DG17T63 DG18T63 DG17T64 DG18T64 DG17T65 DG18T65 DG17T66 DG18T66 DG17T67 DG18T67 DG17T68 DG18T68 DG17T69 DG18T69 DG17T70 DG18T70 DG17T71 DG18T71 DG17T72 DG18T72 DG17T73 DG18T73 DG17T74 DG18T74 DG17T75 DG18T75 DG17T76 DG18T76 DG17T77 DG18T77 DG17T78 DG18T78 DG17T79 DG18T79 DG17T80 DG18T80 DG17T81 DG18T81 DG17T82 DG18T82 DG17T83 DG18T83 DG17T84 DG18T84 DG17T85 DG18T85 DG17T86 DG18T86 DG17T87 DG18T87 DG17T88 DG18T88 DG17T89 DG18T89 DG17T90 DG18T90 DG17T91 DG18T91 DG17T92 DG18T92 DG17T93 DG18T93 DG17T94 DG18T94 DG17T95 DG18T95 DG17T96 DG18T96 DG17T97 DG18T97 DG17T98 DG18T98 DG17T99 DG18T99 DG17T100 DG18T100 DG17T101 DG18T101 DG17T102 DG18T102 DG17T103 DG18T103 DG17T104 DG18T104 DG17T105 DG18T105 DG17T106 DG18T106 DG17T107 DG18T107 DG17T108 DG18T108 DG17T109 DG18T109 DG17T110 DG18T110 DG17T111 DG18T111 DG17T112 DG18T112 DG17T113 DG18T113 DG17T114 DG18T114 DG17T115 DG18T115 DG17T116 DG18T116 DG17T117 DG18T117 DG17T118 DG18T118 DG17T119 DG18T119 DG17T120 DG18T120 DG17T121 DG18T121 DG17T122 DG18T122 DG17T123 DG18T123 DG17T124 DG18T124 DG17T125 DG18T125 DG17T130 DG18T130 DG17T135 DG18T135 DG17T136 DG18T136 DG17T140 DG18T140 DG17T144 DG18T144 DG17T150 DG18T150 DG17T152 DG18T152 DG17T155 DG18T155 DG17T160 DG18T160 DG17T168 DG18T168 DG17T170 DG18T170 DG17T175 DG18T175 DG17T176 DG18T176 DG17T184 DG18T184 DG17T190 DG18T190 DG17T192 DG18T192 DG17T200 DG18T200 DG17T208 DG18T208 DG17T216 DG18T216 DG17T224 DG18T224 DG17T232 DG18T232 DG17T240 DG18T240 DG17T248 DG18T248 DG17T256 DG18T256 DG17T264 DG18T264 |
WM Berg
P64S28-32 P64A28-32 P64S28-34 P64A28-34 P64S28-36 P64A28-36 P64S28-38 P64A28-38 P64S28-40 P64A28-40 P64S28-42 P64A28-42 P64S28-48 P64A28-48 P64S28-50 P64A48-50 P64S28-56 P64A28-56 P64S28-60 P64A28-60 P64S28-64 P64A48-64 P64S28-70 P64A48-70 P64S28-72 P64A28-72 P64S28-75 P64A48-75 P64S28-80 P64A28-80 P64S28-84 P64A48-84 P64S28-88 P64A28-88 P64S28-90 P64A48-90 P64S28-96 P64A48-96 P64S28-104 P64A48-104 P64S28-112 P64A28-112 P64S28-120 P64A48-120 P64S28-128 P64A48-128 P64S28-130 P64A28-130 P64S28-144 P64A28-144 P64S28-160 P64A28-160 P64S28-176 P64A28-176 P64S28-192 P64A48-192 P64S28-208 P64A48-208 P64S28-224 P64A28-224 P64S28-240 P64A28-240 P64S28-256 P64A28-256 P64S28-264 P64A28-264 |
PIC Design
G17-30 G18-30 G17-32 G18-32 G17-34 G18-34 G17-36 G18-36 G17-38 G18-38 G17-40 G18-40 G17-42 G18-42 G17-44 G18-44 G17-46 G18-46 G17-48 G18-48 G17-50 G18-50 G17-55 G18-55 G17-56 G18-56 G17-60 G18-60 G17-64 G18-64 G17-65 G18-65 G17-70 G18-70 G17-72 G18-72 G17-75 G18-75 G17-80 G18-80 G17-84 G18-84 G17-85 G18-85 G17-88 G18-88 G17-90 G18-90 G17-92 G18-92 G17-95 G18-95 G17-96 G18-96 G17-100 G18-100 G17-104 G18-104 G17-105 G18-105 G17-112 G18-112 G17-120 G18-120 G17-127 G18-127 G17-128 G18-128 G17-136 G18-136 G17-144 G18-144 G17-152 G18-152 G17-160 G18-160 G17-168 G18-168 G17-176 G18-176 G17-184 G18-184 G17-192 G18-192 G17-200 G18-200 G17-208 G18-208 G17-216 G18-216 G17-224 G18-224 G17-232 G18-232 G17-240 G18-240 G17-248 G18-248 G17-256 G18-256 |
Omnicomponents
64S09P26 64A09P26 64S09P27 64A09P27 64S09P28 64A09P28 64S09P29 64A09P29 64S09P30 64A09P30 64S09P31 64A09P31 64S09P32 64A09P32 64S09P33 64A09P33 64S09P34 64A09P34 64S09P35 64A09P35 64S09P36 64A09P36 64S09P37 64A09P37 64S09P38 64A09P38 64S09P39 64A09P39 64S09P40 64A09P40 64S09P41 64A09P41 64S09P42 64A09P42 64S09P43 64A09P43 64S09P44 64A09P44 64S09P45 64A09P45 64S09P46 64A09P46 64S09P47 64A09P47 64S09P48 64A09P48 64S09P49 64A09P49 64S09P50 64A09P50 64S09P51 64A09P51 64S09P52 64A09P52 64S09P53 64A09P53 64S09P54 64A09P54 64S09P55 64A09P55 64S09P56 64A09P56 64S09P57 64A09P57 64S09P58 64A09P58 64S09P59 64A09P59 64S09P60 64A09P60 64S09P61 64A09P61 64S09P62 64A09P62 64S09P63 64A09P63 64S09P64 64A09P64 64S09P65 64A09P65 64S09P66 64A09P66 64S09P67 64A09P67 64S09P68 64A09P68 64S09P69 64A09P69 64S09P70 64A09P70 64S09P71 64A09P71 64S09P72 64A09P72 64S09P73 64A09P73 64S09P74 64A09P74 64S09P75 64A09P75 64S09P76 64A09P76 64S09P77 64A09P77 64S09P78 64A09P78 64S09P79 64A09P79 64S09P80 64A09P80 64S09P81 64A09P81 64S09P82 64A09P82 64S09P83 64A09P83 64S09P84 64A09P84 64S09P85 64A09P85 64S09P86 64A09P86 64S09P87 64A09P87 64S09P88 64A09P88 64S09P89 64A09P89 64S09P90 64A09P90 64S09P91 64A09P91 64S09P92 64A09P92 64S09P93 64A09P93 64S09P94 64A09P94 64S09P95 64A09P95 64S09P96 64A09P96 64S09P97 64A09P97 64S09P98 64A09P98 64S09P99 64A09P99 64S09P100 64A09P100 64S09P101 64A09P101 64S09P102 64A09P102 64S09P103 64A09P103 64S09P104 64A09P104 64S09P105 64A09P105 64S09P106 64A09P106 64S09P107 64A09P107 64S09P108 64A09P108 64S09P109 64A09P109 64S09P110 64A09P110 64S09P111 64A09P111 64S09P112 64A09P112 64S09P113 64A09P113 64S09P114 64A09P114 64S09P115 64A09P115 64S09P116 64A09P116 64S09P117 64A09P117 64S09P118 64A09P118 64S09P119 64A09P119 64S09P120 64A09P120 64S09P121 64A09P121 64S09P122 64A09P122 64S09P123 64A09P123 64S09P124 64A09P124 64S09P125 64A09P125 64S09P127 64A09P127 64S09P128 64A09P128 64S09P130 64A09P130 64S09P135 64A09P135 64S09P136 64A09P136 64S09P140 64A09P140 64S09P144 64A09P144 64S09P150 64A09P150 64S09P152 64A09P152 64S09P155 64A09P155 64S09P160 64A09P160 64S09P168 64A09P168 64S09P170 64A09P170 64S09P175 64A09P175 64S09P176 64A09P176 64S09P184 64A09P184 64S09P190 64A09P190 64S09P192 64A09P192 64S09P200 64A09P200 64S09P208 64A09P208 64S09P216 64A09P216 64S09P224 64A09P224 64S09P232 64A09P232 64S09P240 64A09P240 64S09P248 64A09P248 64S09P256 64A09P256 64S09P264 64A09P264 |
Material
303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. 303SS 2024-T4 ALUM. |
