Split Hub Clamps
Use Omnicomponents' Part Numbers or Reference Any Manufacturers' Part Number In Your Request For Quote Allied Devices/WM Berg/PIC Design/Omnicomponents Part Number Cross-Reference Alternate materials and dimensions available upon request |
|
|
Split Hub Clamps
Material:
Socket Head Cap Screw Made in the USA Contact: vic@omnicomponentscorp.com |

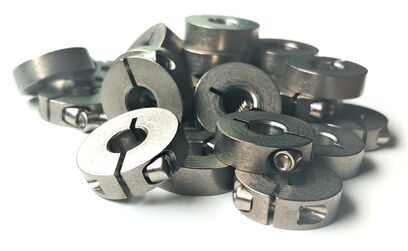

Split Hub Gear Clamps
|
303 Stainless Steel
|
Allied Devices
DL434 DL435 DL436 DL440 DL441 DL442 DL41 DL42 DL43 DL430 DL431 DL446 DL447 DL450 DL451 DL452 DL453 DL454 DL455 DL120 DL456 DL121 DL457 DL122 |
WM Berg
CG1-1 CG1-2 CG1-3 CG1-20 CG1-23 CG1-27 CG1-21 CG1-4 CG1-28 CG1-25 CG1-9 CG1-12 CG1-22 CG1-26 CG1-5 CG1-6 CG1-8 CG1-10 CG1-11 CG1-14 CG1-17 CG1-15 CG1-31 CG1-32 CG1-18 CG1-19 CG1-33 |
PIC Design
L4-1 L4-2 L4-3 L1-20 L1-21 L1-22 |
Omnicomponents
SHC01 SHC02 SHC03 SHC04 SHC05 SHC06 SHC07 SHC08 SHC09 SHC10 SHC11 SHC12 SHC13 SHC14 SHC15 SHC16 SHC17 SHC18 SHC19 SHC20 SHC21 SHC22 SHC23 SHC24 SHC25 SHC26 SHC27 |
B
.103 .125 .141 .125 .188 .250 .125 .188 .250 .188 .250 .313 .188 .250 .188 .219 .250 .281 .312 .375 .437 .375 .375 .437 .437 .562 .562 |
D
.500 .500 .500 .562 .562 .562 .625 .625 .625 .875 .875 .875 .562 .562 .625 .625 .875 .875 .875 1⅛ 1⅛ 1¼ 1¼ 1¼ 1¼ 1¼ 1¼ |
T
.156 .156 .156 .156 .156 .156 .156 .156 .156 .250 .250 .250 .125 .125 .188 .156 .188 .250 .188 .250 .250 .312 .312 .312 .312 .312 .312 |
Clearence r
5/16 5/16 5/16 3/8 3/8 3/8 3/8 3/8 3/8 3/8 17/32 17/32 17/32 3/8 3/8 3/8 11/32 1/2 17/32 11/16 11/16 11/16 5/8 5/8 11/16 11/16 5/8 |
Screw
#3-48 #3-48 #3-48 #2-56 #2-56 #2-56 #2-56 #2-56 #2-56 #6-32 #6-32 #6-32 #1-72 #1-72 #4-40 #2-56 #4-40 #6-32 #4-40 #8-32 #8-32 #8-32 #8-32 #8-32 #8-32 #8-32 #8-32 |
Aluminum Anodized
|
Allied Devices
DL437 DL438 DL439 DL443 DL444 DL445 DL44 DL45 DL46 DL432 DL433 |
WM Berg
CG1-1-A CG1-2-A CG1-3-A CG1-20-A CG1-23-A CG1-27-A CG1-21-A CG1-24-A CG1-28-A CG1-25-A CG1-9-A CG1-12-A CG1-22-A CG1-26-A CG1-8A CG1-14A CG1-17A CG1-15A CG1-18-A CG1-19-A |
Omnicomponents
SHC01A SHC02A SHC03A SHC04A SHC05A SHC06A SHC07A SHC08S SHC09A SHC10A SHC11A SHC12A SHC13A SHC14A SHC17A SHC20A SHC21A SHC22A SHC25A SHC26A |
B
.103 .125 .141 .125 .188 .250 .125 .188 .250 .188 .250 .313 .188 .250 .250 .375 .437 .375 .437 .562 |
D
.500 .500 .500 .562 .562 .562 .625 .625 .625 .875 .875 .875 .562 .562 .625 1⅛ 1⅛ 1¼ 1¼ 1¼ |
T
.156 .156 .156 .156 .156 .156 .156 .156 .156 .250 .250 .250 .125 .125 .188 .250 .250 .312 .312 .312 |
Clearence r
5/16 5/16 5/16 3/8 3/8 3/8 3/8 3/8 3/8 3/8 17/32 17/32 3/8 3/8 31/64 21/32 21/32 11/16 11/6 11/16 |
Screw
#3-48 #3-48 #3-48 #2-56 #2-56 #2-56 #2-56 #2-56 #2-56 #6-32 #6-32 #6-32 #1-72 #1-72 #4-40 #8-32 #8-32 #8-32 #8-32 #8-32 |
